Description

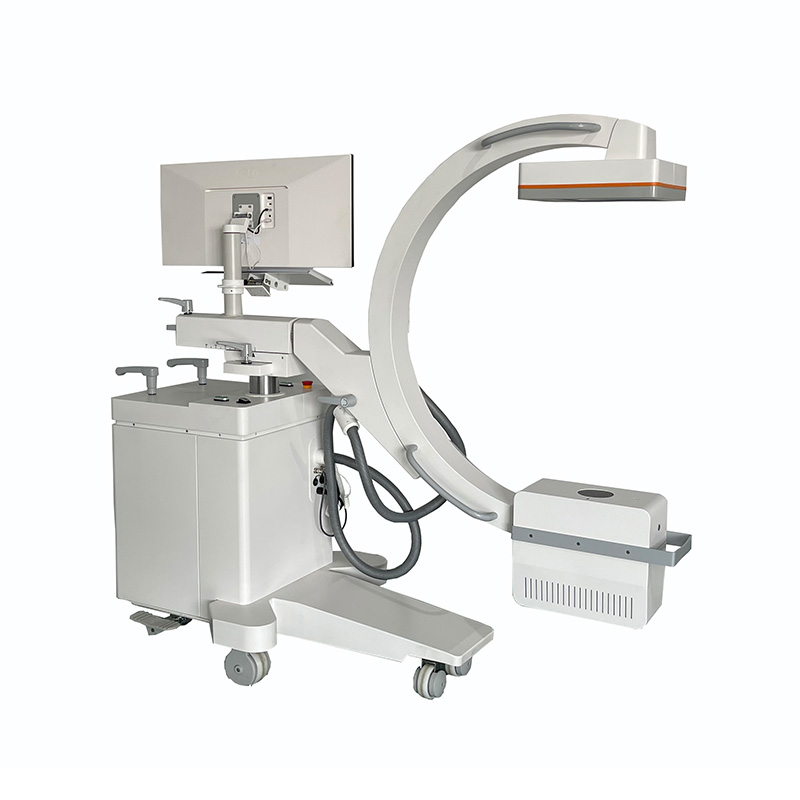

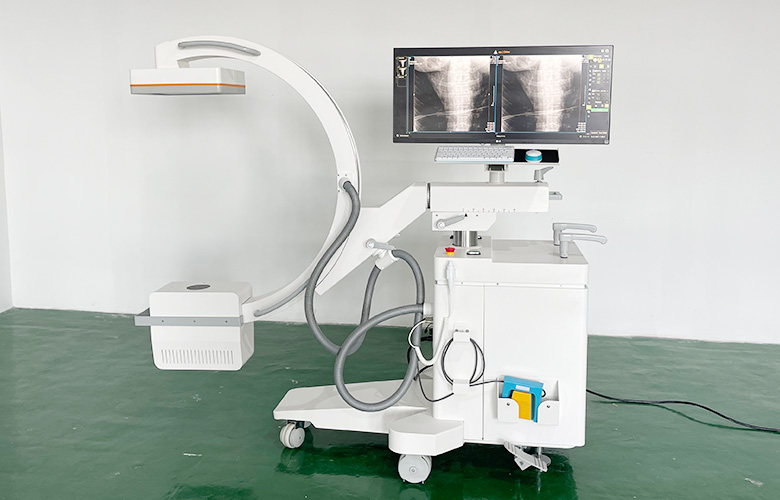

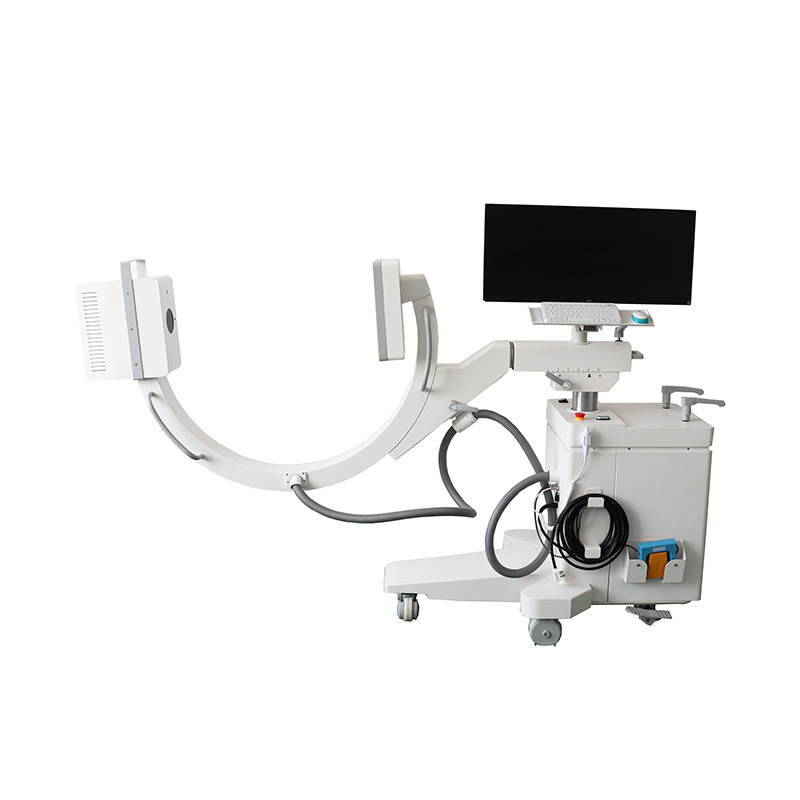

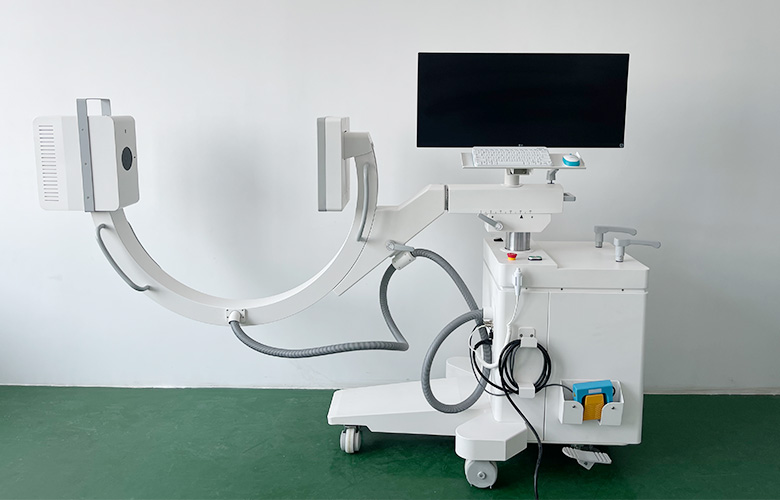

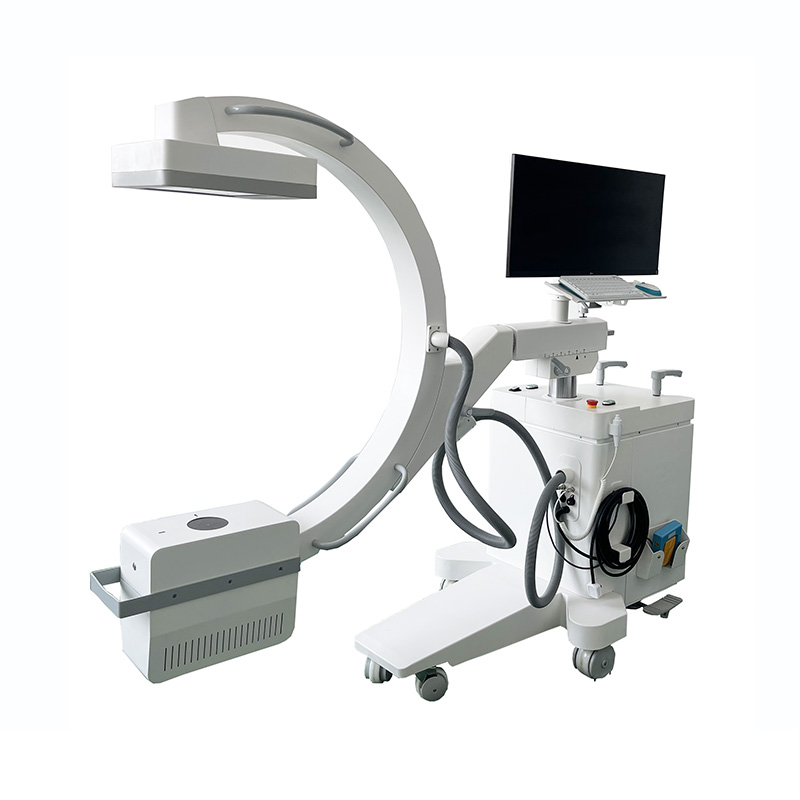

This device integrates a C-arm structure, X-ray generator, high-voltage generator and digital imaging system. It is suitable for pet hospitals, veterinary clinics and animal research institutions, and can meet the imaging examination needs of bones, joints, chest cavity and abdomen of various animals (such as dogs, cats, horses, cattle, etc.).● Laserlocalizer and 210mmx 210mm flat penel detectorfor high-resolution images.
● 5KW Powerful generatorLarge diameter,lightweight mobile C-armfor easy accessto theoperatingtable
● High performance x-ray tubeemitsX-rays in pulsed modewithmodulated power to suit every procedure type
● 34"monitor projectreal-time video andreferenceimages simultaneously
● Foot switch,Multi-function hand switch.
| Model | NC-5KW-P |
| Output power | 5KW |
| Current of fluoroscopy | 0.3-6.3mA |
| Current of radiography | 0.1-100mA |
| Voltage | 40kV-125kV |
| Focal Spot value | 0.3mm/0.6mm |
| Rotating anode speed | 2800rmp |
| Anode heat storage | 300KHU |
| Housing Heat Storage Capacity | 1200KHU |
| Size | 21*21cm |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Image resolution | 2.5lp/mm |
| Frame rate | MAX 30frames/sec |
● 5.0kW High-voltage Generator One set
● X-ray Tube One set
● Grid One set
● 21*21cm Flat Panel Detector One set
● Mechanical Frame One set
● Laser Positioning Device One set
● Image Capturing and Processing Softaware One set
● Computer One set
● 34" LCD Monitor One set
● Exposure Switch One set
● Manual One set
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
