Description
LED illumination-strong,focused and reliable LED light source.Cool LED light source at the tip of the blade designed to lower the risk of damage to delicate oral tis-sues. Brushed stainless steel with matte finish helps reduce glare during use.Durable stainless-steel construction from tip to base designed for reliable performance.The simple "click"locking and unlocking mechanism allows it to be attached quickly and reliably.●MATERIAL

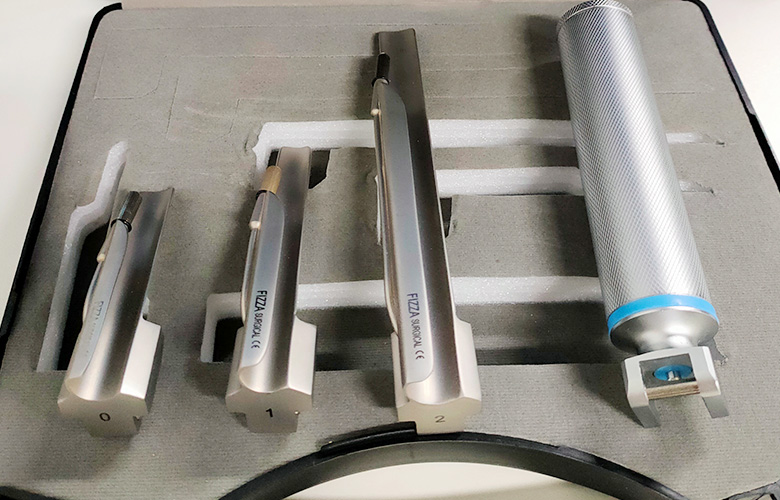

Our Fiber optic laryngoscope blades are manufactured from a high quality AISI 304 stainless steelSteel Melt Type which is highly resistant to corrosionThe bulb is in the handle,blade can be sterilizedat 134℃;All blades and handles are removable and interchangeable with other blades of the samesize.
●APPLICATION
Bulb anesthesia laryngoscope is used to expose the airway during endotracheal intubation under gen-eral anesthesia,used in conjunction with a ventilator or anesthesia machine.Different models areavailable for different sizes of animals.
●OPERATING INSTRUCTIONS
1.Engage the blade by aligning the slot of the blade on to the hook pin of the handle and apply a suffi-cient force(%-1b)as shown in Fig.1.
2.Apply force upward to bring the blade into operating position as shown in Fig.2.
3.To bring the blade into standby position apply force downward as shown in Fig.2.

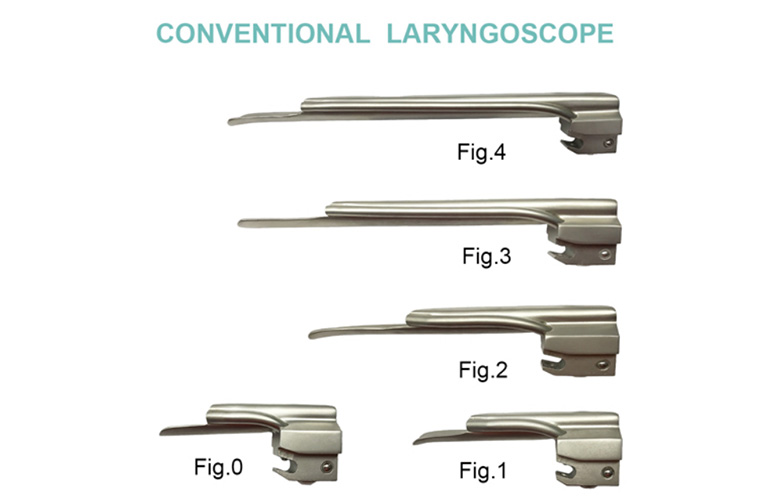

| CONVENTIONAL AND FIBER OPTIC LARYNGOSCOPE | ||
| Model | Description | Set Size |
| CL-02 | Conventional Laryngoscope with bulb.Reusable blades and handle 2 C-Type batteries (Batteries not supplied) | Set of 0,1,2 |
| CL-04 | Conventional Laryngoscope with bulb.Reusable blades and handle 2 C-Type batteries (Batteries not supplied) | Set of 0,1,2,3,4 |
| FL-02 | Fiber Optic Laryngoscope Reusable blades and handle2 C-Type batteries(Batteries not supplied) | Set of 0,1,2 |
| FL-04 | Fiber Optic Laryngoscope Reusable blades and handle2 C-Type batteries(Batteries not supplied) | Set of 0,1,2,3,4 |
● Laryngoscope Unit: The main body of the laryngoscope, which may include a handle and one or more blades suitable for veterinary use.
● Blade Options: Depending on the model, the package may include multiple blade sizes or types to accommodate different animal sizes and throat anatomies.
● Light Source: If the laryngoscope is equipped with a light source (e.g., LED), the package may include batteries or a battery charger.

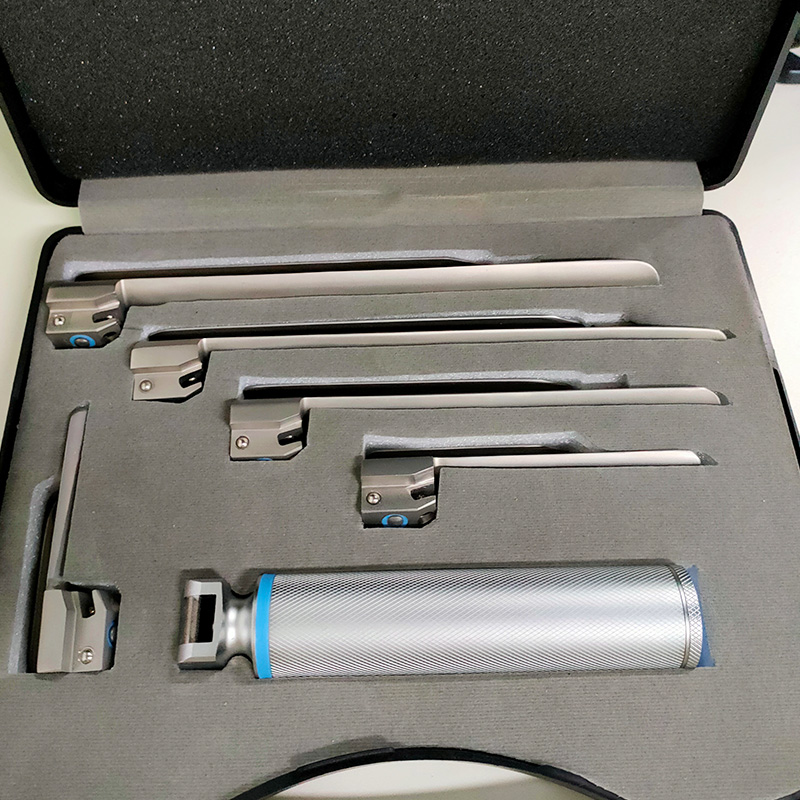

● Carrying Case: A durable, protective case for storing and transporting the laryngoscope and its accessories.
● Cleaning and Maintenance Tools: Such as brushes, wipes, or disinfectant solutions for keeping the laryngoscope clean and in good working condition.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
