Description
Easier operation with the visualized human-machine interaction interface An Microcomputer lC controlled program with the exclusive pet parameters design enables a " one-click shoot" set up The Internal full charged high rate power lithium battery permits 200 shoots, which greatly facilitates the treatment process● CMOS APS Master control chip enables a 3-seconds image formation
● The formed images' line pair resolution and pixels are high,which make them sharper
● A powerfullmage enhancement algorithm and one-button processing function: just one click to diagnose the root canal,the periodontal disease, the caries, or the dental crown
| X-ray Equipment Specifications | |
| Tube Voltage | 60kV |
| Tube Current | 2.0Ma |
| Exposure Time | 0.1--1.2s |
| Frequency | 30KHz |
| Rate Power | 120VA |
| Distance From skin To Cone | 130mm |
| Tube Focus | 0.4mm |
| Battery | DC 2200mAh |
| Charger Input Voltage | AC100V-240V±10% |
| Output Voltage) | DC14.8~16.8V |
| Gross Weight | 4.8KG |
| Package Size | 365mm*330mm*265mm |
| DR System Specifications | |
| Chip Type | CMOS APS |
| Scintillator | GoS/Csl |
| Dimension | 27.5*38.5mm 32.3*44.3mm |
| Active Area | 22.5*30mm 27*36mm |
| Pixel Size | 18.5μm |
| Image Pixel | 1.9M(1600*1200)2.7M(1920*1440) |
| Resolution(Ip/mm) | Theoretical:27lp/mm |
| Measured:12-14lp/mm(GOS)16-20lp/mm(Csl) | |
| Operation | Windows 2000/Win7/Win8/Win10(32bit&64bit) |
| Additional" | TWAIN Driver" |

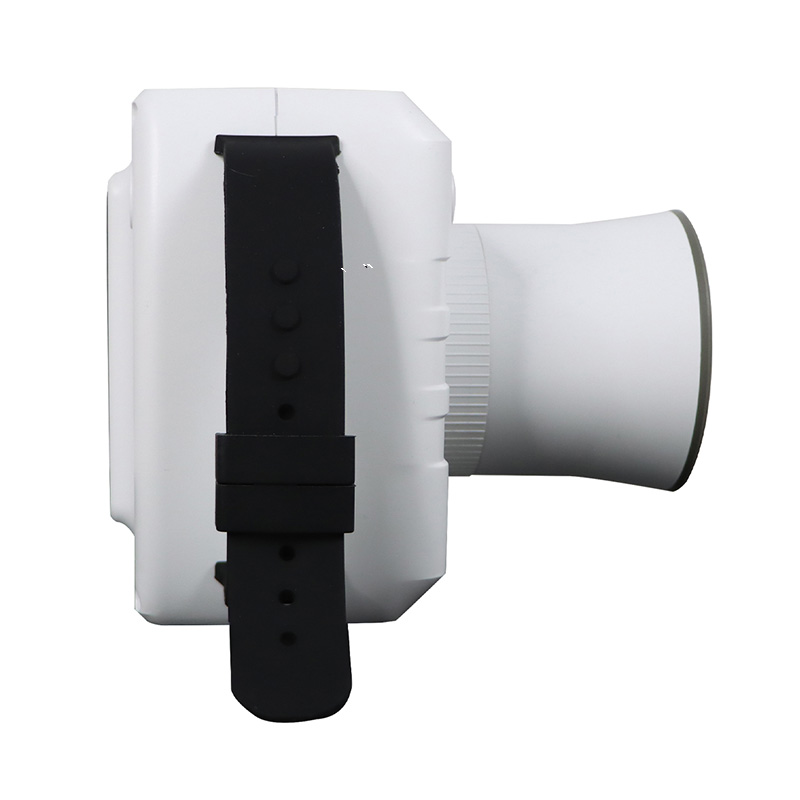

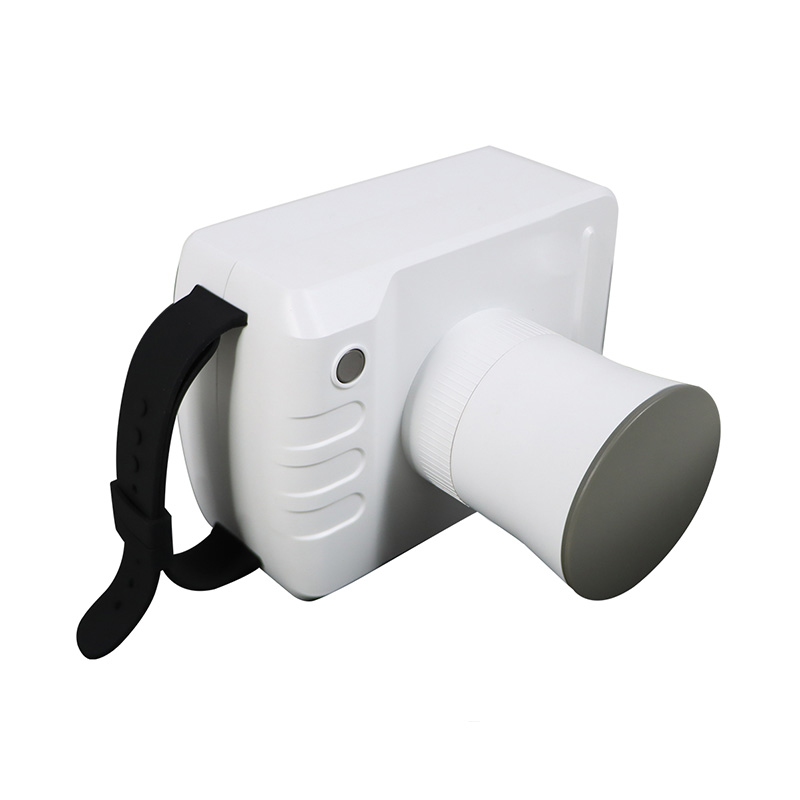

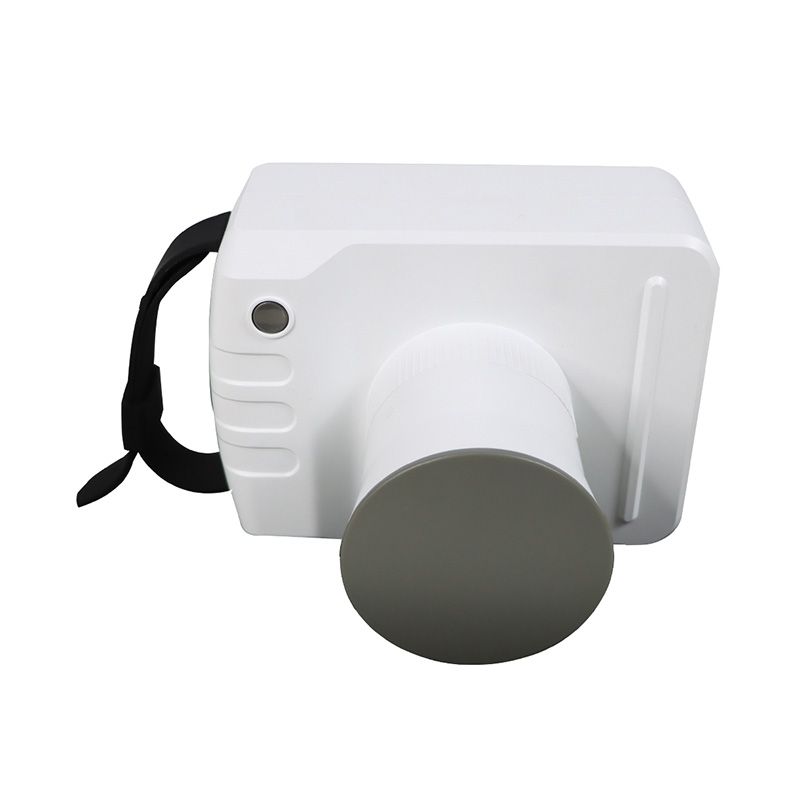

● Main Unit Portable X-ray machine with stable output (e.g., high-frequency inverter).
● X-ray Tube Adjustable-focus X-ray tube (e.g., dual-focus 0.6mm/1.8mm).

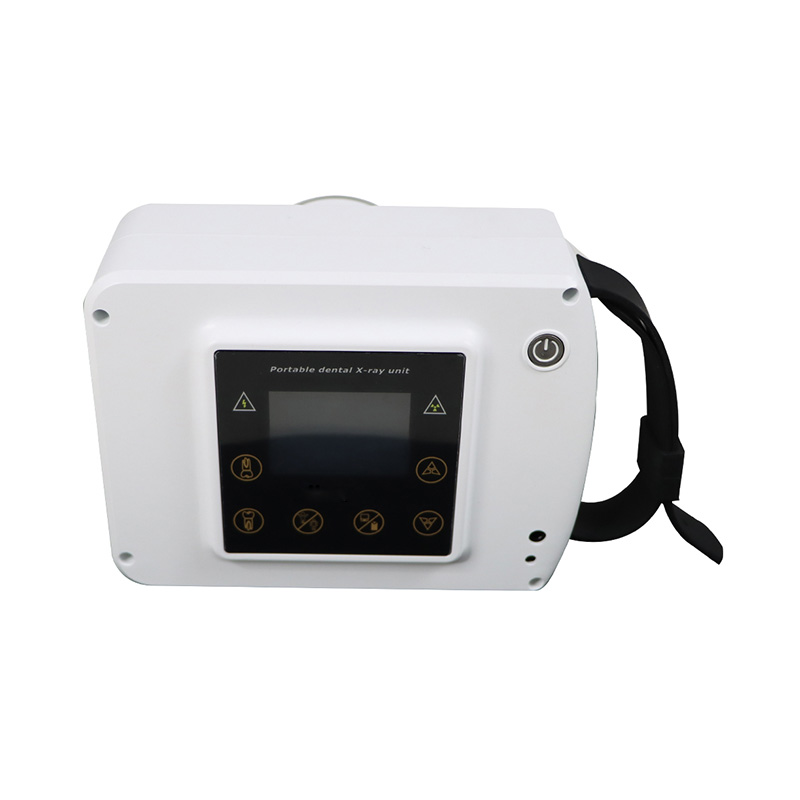

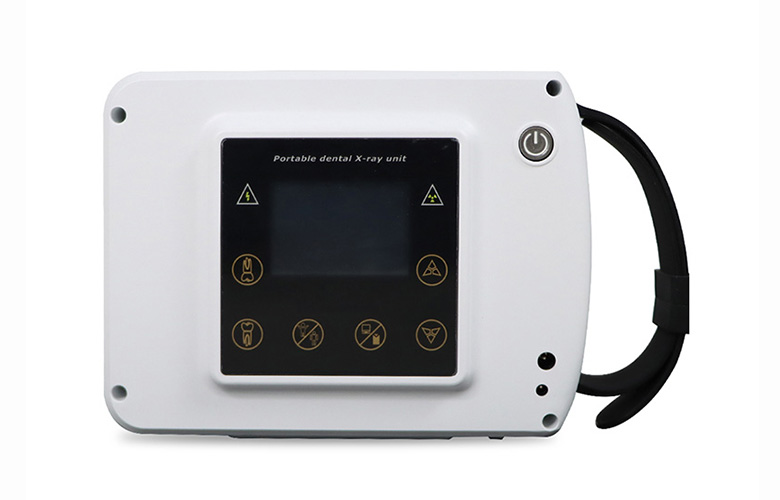

● Control Panel LCD touch screen with intuitive operation and sound prompts.
● Collimator Adjustable collimator with LED lights for precise X-ray field alignment.
● Power Cord & Accessories Power cable, hand brake, and basic setup accessories.
● Detector (Optional) Digital flat panel detector (e.g., 17x17 inch) for high-resolution imaging.
● Trolley/Stand (Optional) Mobile trolley or stand for easy transport and positioning.
● Manual & Software User manual, operation software, and SDK for system integration.
● Warranty Card Warranty details and after-sales support information.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
