Description

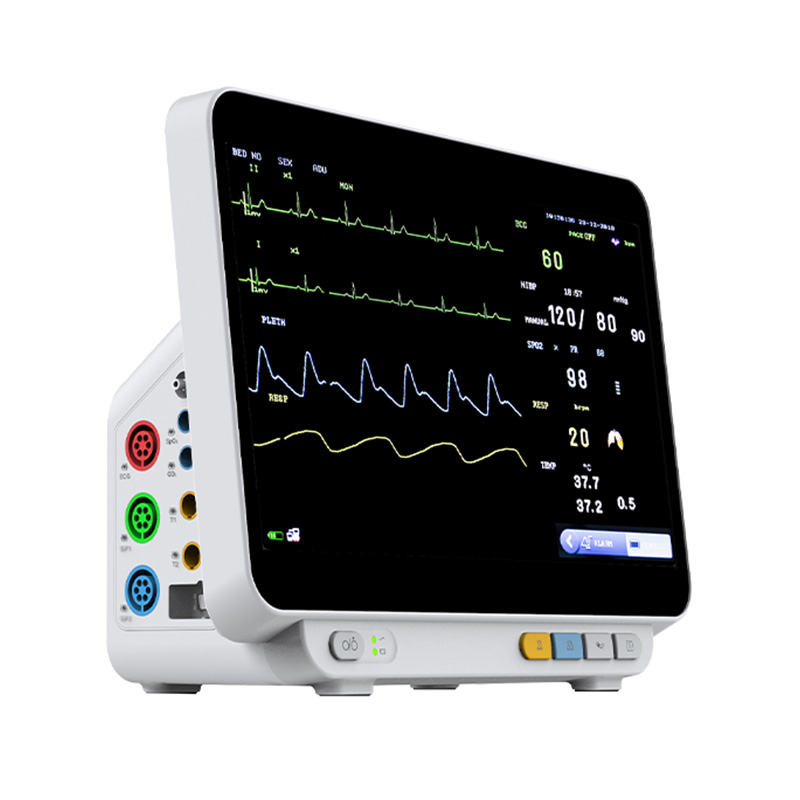

NIBP: Anti-weak signal and anti-interference algorithms designed for the characteristics of animal blood flow, enabling fast and accurate blood pressure measurements.SpO2: advanced anti-interference and weak perfusion technologyECG: Patented ECG algorithm, supports multiple arrhythmia identification.Mainstream and bypass CO2: ideal for measurement in spontaneously breathing and mechanically ventilated animals Efficient and easy to use.• 14 inch color LCD touch screen.
• Suitable for various animal monitoring
• Multi- channel waveform display.ST segment analysis.Alarms sound and light can be set.
• Record and return electrocardiogram waveform.
• Advanced streamline outline design, portable, compact, lightweightBuilt-in high capacity lithium battery (4 hours) for emergency.
• With data power-off storage function.
• Anti-fibrillation, anti-high-frequency electrosurgicalinterference.

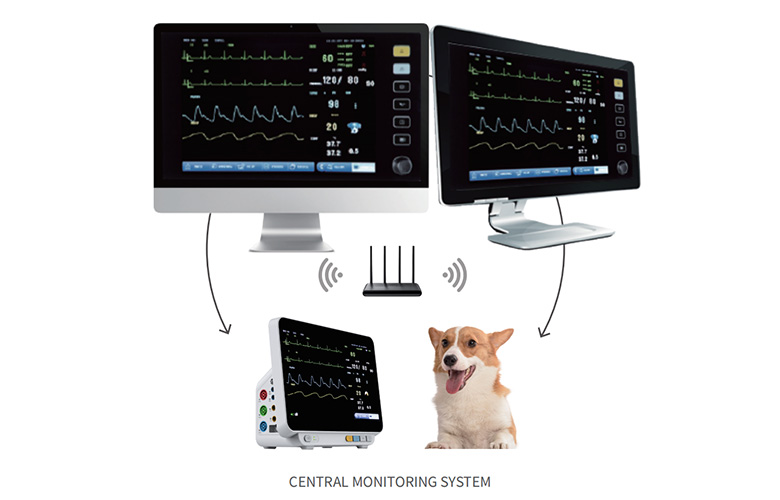

• Support wire or wireless central monitoring system.
| Standard parameter | ECG/PR/TEMP/RESP/NIBP/SPO2/Touch screen |
| Optional configuration | ETCO2/Nellcor SpO2/IBP/Built-in recorder/ |
| Monitor bracket trolley/Monitor wall bracket | |
| Working environment conditions | Working temperature 0-40℃ |
| Working humidity≤85% | |
| Shipping and storage conditions | Transportation and storage temperature-20-60℃ |
| Transportation and storage humidity≤93% | |
| Voltage | 100-240(V)AC,50/60(Hz) |
| Pmax=70VA | |
| FUSE 2AL250V | |
| ECG Specification | Range |
| Adult 15～300bpm(beat/minute) | |
| Precision±1%or±1bpm,the larger prevails | |
| Resolution 1 bpm(beat/minute) | |
| RESP Specification | Range |
| Adult0～120BrPM | |
| Resolution 1 BrPM | |
| Precision±2 BrPM | |
| NIBP Specification | 40-240 bpm |
| SpO2 Specification | Range0～100% |
| Resolution 1% | |
| Precision 70～100%:±2% | |
| 0%～69%:no definition given | |
| TEMP Specification | Range0～50℃ |
| Resolution 0.1℃ | |
| Precision±0.1℃(excluding sensor error) |

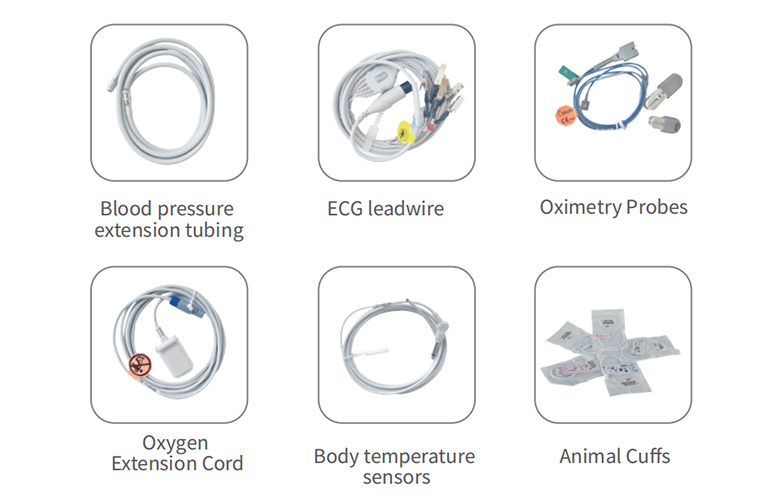

Accessories for animals：
extension tubing
Blood pressure ECG leadwire Oximetry Probes
Extension Cord
Oxygen Body temperature
sensors
Animal Cuffs
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
