Description

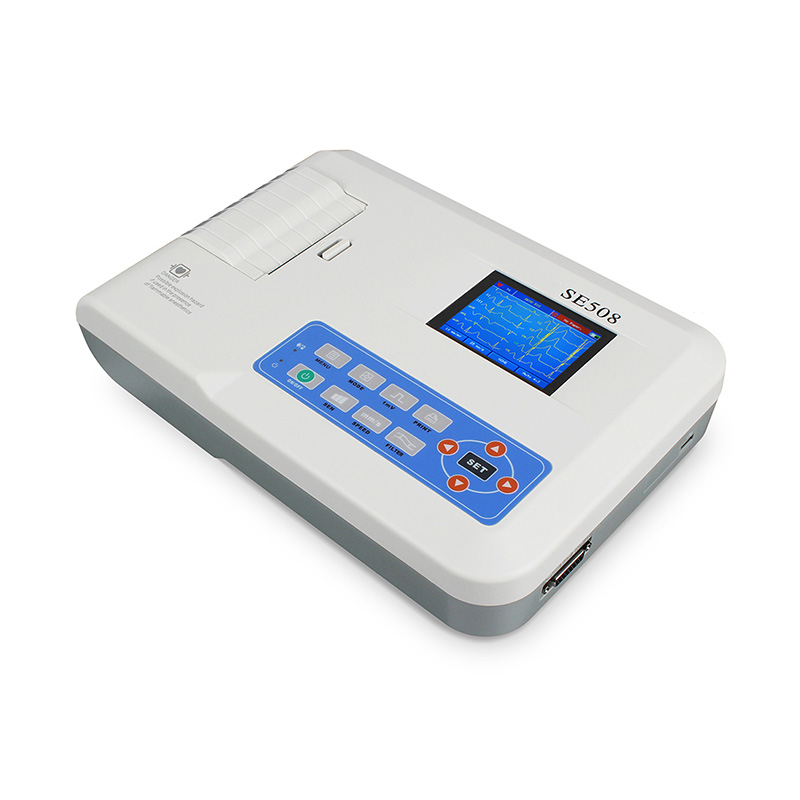

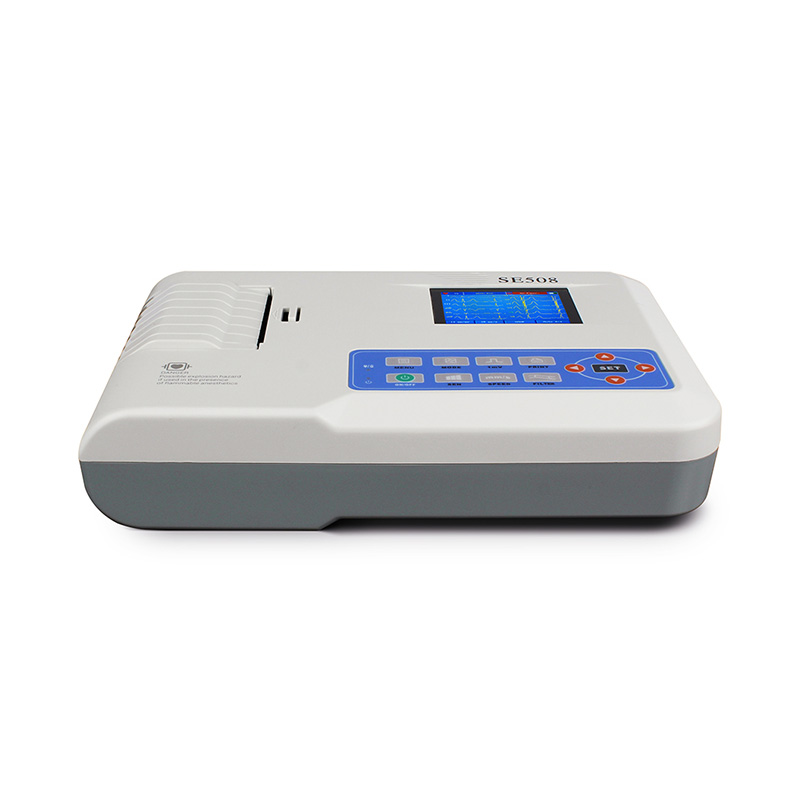

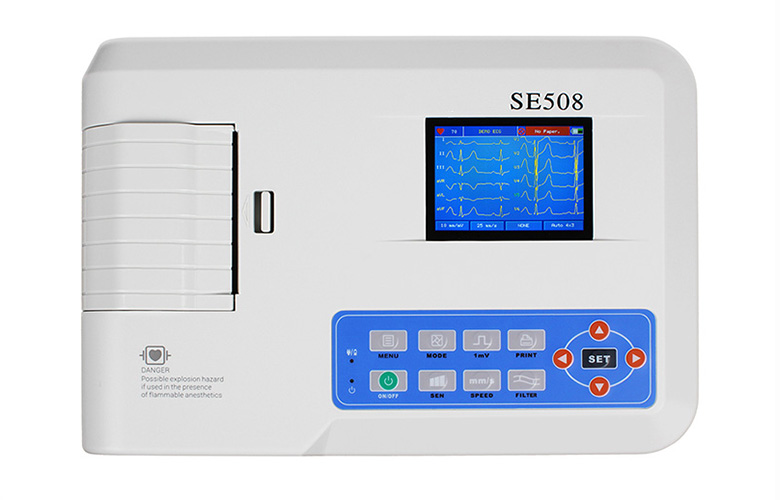

The 3-Channel Electrocardiograph SE508 Vet is a compact, portable veterinary ECG device with a 3.8-inch color display and built-in thermal printer. It supports 12-lead ECG acquisition, displays 3 synchronized channels, and offers manual/automatic operation modes with auto-analysis for quick diagnostics. With 1,000-case memory storage, interference protection, and a rechargeable lithium battery, it ensures reliable, on-the-go cardiac monitoring for animals.● Sharp and Clear 4.3 inch TFT screen
● 12 lead ECG simultaneously display
● Built-in Database and store more than 1000 pieces of ECG data
● Digital signal processor for filter feature
● Auto-measurement, auto-analysis and auto interpretation functions
● Ergonomic and compact
● Both AC and DC power supply with built-in lithium rechargeable battery
● Application from small to large animals
Size and Weigh
- Product size: 31.5x21.5x7.5cm
- Packing size: 41x31x21cm
- Net weight: 2.25kg
- Gross weight: 3.8kg
- 4.3 Inch Color TFT display
- Resolution:320x240 pixels or higher
ECG Instrument Input
- Measurement parameters:HR,P-R interval, P-Duration, QRS Duration, Q-T interval, -Tc, P Axis, QRS Axis, T Axis, R(V5),S(V1),R(V5)+S(V1)
- Safety Type: Class I, Type CF
- Lead: Standard 12 leads
- Input Way: Floating and defibrillation protection
- Patient leak current:<10uA
- Sampling Rate: 1000Hz
- ND conversion: 12 bit
- Frequency response:0.05Hz-150Hz(-3dB)
- Input impedance: ≥50MΩ
- Time constant: Time constant≥3.2s
- CMRR: > 60dB, > 100dB( Add filter)
Dispose wave data:
- EMG interference filter: 25Hz/35Hz(-3dB)
- AC filter: 50Hz/60Hz( 20dB)
Printing output:
- Recording Way: Thermal Printing System(8spots/mm)
- Recording paper: 80mm(W)x20m (L)
- Paper speed: 6.25mm/s,12.5mm/s, 25mm/s, 50mm/s
- Sensitivity choice: 2.5, 5,10,20,40mm/mV.Standard
sensitivity is 10mm/mV+0.2mm/mV
Power supply:
- AC: 220V, 50Hz(110V, 60Hz)
- DC: 7.4V, 3700mAh rechargeable lithium polymer battery
Fuse Specification:
- 2pcs φ5x200mm AC time lag; T250mA/250V(Power Supply : 220V)
Option:
- ECG-Sync software packag
● Main Unit: The 1-channel electrocardiograph device itself.
● Electrodes: A set of veterinary-specific ECG electrodes for animal use.
● Lead Wires: High-quality lead wires to connect the electrodes to the main unit.
● Power Supply: An AC adapter or battery pack for powering the device.
● User Manual: Instructions for setup, operation, maintenance, and safety precautions.
● Carrying Case: A protective case for storing and transporting the device and accessories.
● Optional Accessories (if included): Software for ECG data analysis, a warranty card, and safety warning labels.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
