Description

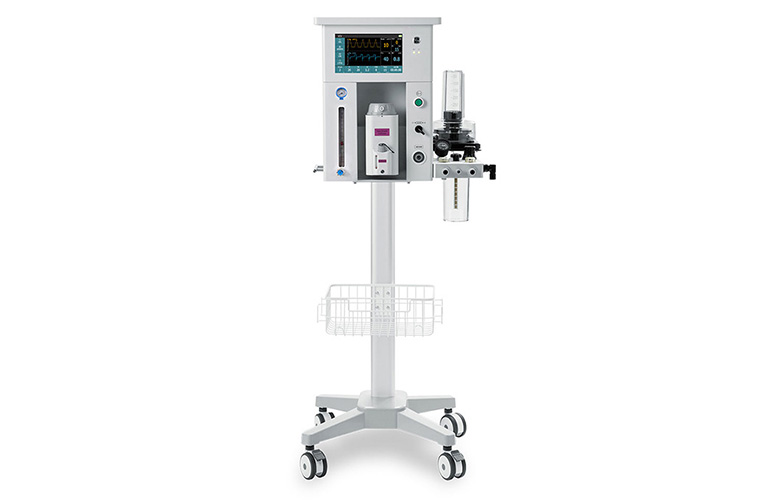

Veterinary Anesthesia Machine is a medical device used for animal surgery and diagnosis and treatment. Its main function is to provide anesthetic gas and oxygen for animals to maintain their painless state during the surgery.● Suitable for anesthesia of cats/dogs/monkeys/pigs and other animals under 100KG
● Operation Mode: Semi-closed,open breathing circuit for option
● Flow Range: 0-4L/min
● APL: 0.2-7.0Kpa
● O2 Flush: 25-75L/min high oxygen flow
| Physical Specifications | |
| Dimensions and Weight | |
| (Including trolley,evaporator,excluding accessories package) | |
| Weight | ≤37kg |
| Height | 1397mm |
| Width | 640mm |
| Depth | 634mm |
| Castor | 4 castors and 2 with brakes |
| Top Shelf | |
| Length | 425mm |
| Width | 260mm |
| Weight limit | 10kg |
| Display | |
| Size | 10.1” |
| Resolution | 1024*600 |
| Brightness | Adjustable(1-5 level) |
| Touch Screen | Capacitive |
| LED Indicator | 2,one for AC power and one for operation |
| Audio Indicator | Alarm(4 levels) |
| Speaker | |
| Electrical Specifications | |
| AC Power Input | |
| Voltage | 220V~240V |
| Frequency | 50/60Hz |
| Internal Batteries | |
| Number Of Batteries | 1 |
| Battery Type | Lithium battery |
| Rated Battery Voltage | 14.8V |
| Battery Capacity | 2200mAh |
| Minimum Battery Run Time | ≥60min(Under the standard working condition) |
| Port | RS232 |
| Pneumatic System Specifications | |
| Pipeline Supply | |
| Gas Type | Oxygen |
| Gas Supply Pressure Range | 280kPa~600kPa(40psi~87psi) |
| Input Connector | NIST or DISS |
| Gas Supply Pressure Gauge Range | 0kPa～1000kPa(Opsi~140psi) |
| Oxygen Flush Flow Range | 25L/Min~75L/Min |
| Flowmeter | |
| Range | OL/min～5L/min |
| Accuracy | <1L/min:±0.1L/min 1L/min~5L/min:10%of the displayed value |
| Auxiliary Common Gas Outlet (ACGO) | |
| Type | Mechanical switch |
● Gas filter tank: It is used to filter impurities in the anesthetic gas to ensure the purity of the anesthetic gas delivered to animals.
● Gas recovery device: It is used to recover the unused anesthetic gas during the surgical process, reducing waste and environmental pollution.
● Induction box: It is used to induce anesthesia in animals before surgery, enabling them to smoothly enter the anesthetized state.
● Fixed bracket: It is used to fix various components of the anesthesia machine, such as the evaporator, induction box, gas recovery device, etc., to ensure the stability of the anesthesia machine during use.
● Other accessories: such as oxygen cylinders (or air pumps), masks, tracheal intubation tubes, etc. These accessories may vary depending on the specific model and application of the anesthesia machine.
● User Manual: Provides information such as usage instructions, operation guides, and maintenance for the anesthesia machine. The user manual is an important reference for users to understand and use the anesthesia machine.
