Description

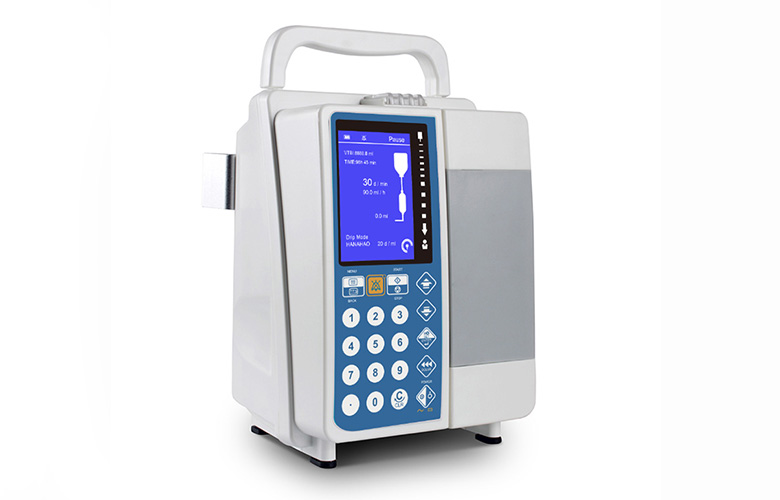

A infusion pump specially designed for veterinary clinical practice, featuring high precision, high safety and convenient operation. It can precisely control the infusion rate and dosage, and is suitable for various scenarios that require precise drug administration, such as anesthesia, analgesia, and fluid replacement. This infusion pump adopts advanced microcomputer control technology and has multiple infusion modes and alarm functions, which can effectively improve the safety and effectiveness of treatment. Its design is compact and lightweight, easy to carry and operate, and can meet the needs of different veterinary clinical environments.● 3.2" Sharp and Large Display ensures clear view from distance
● Special veterinary design and optimization
● Users friendly interface for easy operation
● Dual CPU to ensure ultimate safety and reliability
● Precise control of the infusion rate and infusion volume
● 4 Different Infusion Modes (Option) meet most clinical needs
● Anti-bolus System to improve infusion safety
● Upto 10 hours long battery life
| Infusion Mode | Volume Mode、Time Mode、Drug Mode、Bolus Mode、Drip mode |
| Rate Unit | ml/h、volume/time、d/min |
| IV Sets | Standard single use IV sets ( 10、15、20、60d/mL, with diameter 3.4 ~ 4.5mm) |
| Flow Rate | 1.0ml/h～1200ml/h；1.0d/min～400d/min |
| Increment | 1.0-99.9ml/h with 0.1ml/h；100-1200ml/h with 1ml/h |
| Deviation | Flow Rate：≤±5%（after calibration） |
| VTBI | 0.1～9999.9 ml |
| Total Volume | 0～9999.9 ml |
| Time | 1min ～ 99h59min |
| Purge Rate | 600ml/h，displaying purge volume |
| KVO | 0.1ml/h~5.0ml/h， adjustable |
| Keypad | Numeric Keypad，user friendly |
| BOLUS | Bolus function available,flow rate adjustable |
| Night Mode | Night Mode, No operation for 5mins, LCD brightness lower automatically. |
| Occlusion Pressure | Occlusion pressure detection , 40~ 130KPa ,0～9 levels adjustable. |
| Detection | dynamic pressure value display. |
| Air bubble Detection | Ultrasonic detection,≥50μL,Single bubble volume: 50 ~300μl,0～9 levels adjustable. |
| Volume | 0～9 levels adjustable |
| Motor Anti-reverse Function | Anti-reverse function to prevent upstream |
| IV Set | Open System. Can accept all kinds of IV Set after calibration |
| Self-Testing | Self-Testing when start up and during infusing |
| Air bubble, occlusion, door open, infusion finish, standby time expired, battery low, | |
| Audio Visual | battery empty, battery disengaged, AC Power disengaged, motor error, pump error, |
| Alarm Message | pressure sensor error, parameter error, system abnormal |
| Screen Power Supply | 3.2’brightness LCD |
| AC: 100V ~ 240V, 50Hz/60Hz, ≤ 25VA | |
| Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh;operating time: ≥ 10 hours |
| @25ml/h， displaying remaining battery | |
| Operation Conditon | Temperature:5°C~40°C,Relative humidity:20% ~ 80% ,Atmospheric pressure:70~106KPa |
| Transportation & Storage | Temperature:-20°C~55°C,Relative humidity:10% ~ 95% ,Atmospheric pressure:50~106KPa |
| Classification | Type CF,ClassⅠ, IPX3,ISO13485,CE,IEC60601 |
| Dimension | 145mm×150mm×200mm； |
| Weight | 1.7kg |
● Infusion pump main unit: That is, the main equipment of the SH-610 Vet infusion pump, which is used to precisely control the infusion speed and dosage.
● Power adapter: Provides power support for the infusion pump to ensure its normal operation.
● Infusion tubing (possibly included) : It is used to connect the infusion pump and the animal to achieve the infusion of drugs. However, in some cases, the infusion tubing may need to be purchased separately by the user.
● Fixed bracket or fixture (may be included) : Used to fix the infusion pump on the infusion stand or other suitable position for convenient use.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
