Description

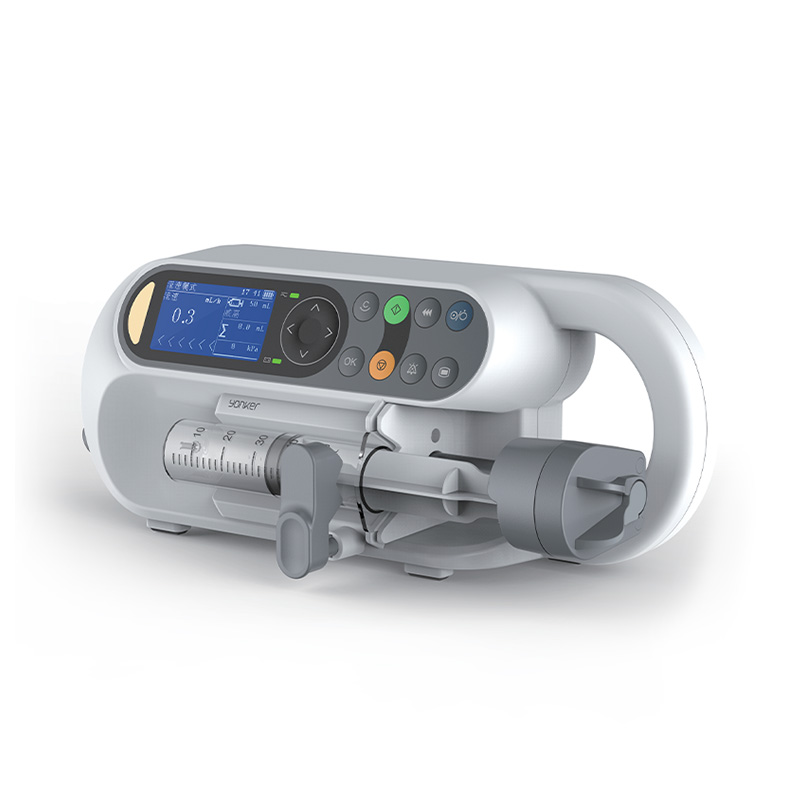

VP1 type veterinary syringe pump can manually control parameters such as injection speed and preset total amount, so that it can accurately control the output of drugs. At the same time, it has the functions of constant speed infusion, fast infusion, automatic identification of syringe specifications, KVO function, real-time display and alarm, which is more convenient for operators to use.● Automatic infusion, sound alarm, AC and DC dual-use
● Quick release function，power-on self-test
● Multiple infusion modes: Infusion modes: ml/hour, drops/minute, time mode
● Flow rate accuracy calibration: Forget alarm function, flow rate accuracy calibration
● Totalization display, totalization reset: With totalization display and totalization reset function
● Pharmacy Functions: Memory function, library function, Chinese/English switching
● Display, volume settable:
Real-time time display and setting, adjustable key tone setting, adjustable brightness of backlight display, alarm volume can beset and adjusted.
| Syringe size: | 10mL,20mL,30mL,50mL |
| Rangeandstepsize: | 10mL:range should bewithin(0.1~300)mL/h,step:1mL/h 20mL:rangeshouldbe within(0.1600)mL/h,step:0.1mL/h 30mL:rangeshouldbe within(0.1~900)mL/h,step:0.1mL/h 50mL:Rangeshould be within(0.11500)mL/h,Step:0.1mL/h. |
| Injection precision: | Precision should be:≤5mL/h:4%;≥5mL/h:3%. |
| Working Conditions: | Operating Temperature:+5℃~+40℃, Operating Relative Humidity:30%~80%,Operating AirPressure:86kPa~106kPa |
| Storage and transportation conditions: | transportation and storage temperature:-20C~55C, transportation and storage relative humidity:10%~93%, transportation and storage air pressure:50kPa~106kPa. |
| Power supply specifications: | Input voltage:AC220V±22V,input frequency:50Hz±1Hz |
| Battery Type: | 11.IV 2000 mAh Lithium lon Battery |
| Charging time: | more than 10h under power-off condition |
| Power supply time: | continuous operation at a flow rate of5mL/h using a new fully charged battery dischargetime of 2h ormore |
KVO flow rate:KVO speed range(0-1)mL/h, step size of 0.1mL/h,precision of 20% History:1000 syringe pump history information can be viewed Alarm display:sound and light alarm Alarm volume:three adjustable levels(high,medium,low) Blocking pressure:the blocking pressure can be adjusted to meet the needsof different patientsinthe clinicduringinfusion of the blockingpressure. | |
Pressure release: | After the pressure reaches the blocking alarm que value,the equipment should be able to play the pressure automatic release function. Pressure unit:optional [kPa],[bar],[psi] Drug library:5 drug information can be selected Safety classification:Classll and internal power supply equipment, Type BF,IPX2 equipment LCD display:3.2 inches Screen backlighting:selectable [high],[medium],[low] Product size:336*120*140mm Product weight:2.0KG |
● Syringe Pump Unit: The main device with adjustable flow rate settings and a display screen.
● Power Adapter/Cord: For connecting the pump to an electrical outlet.

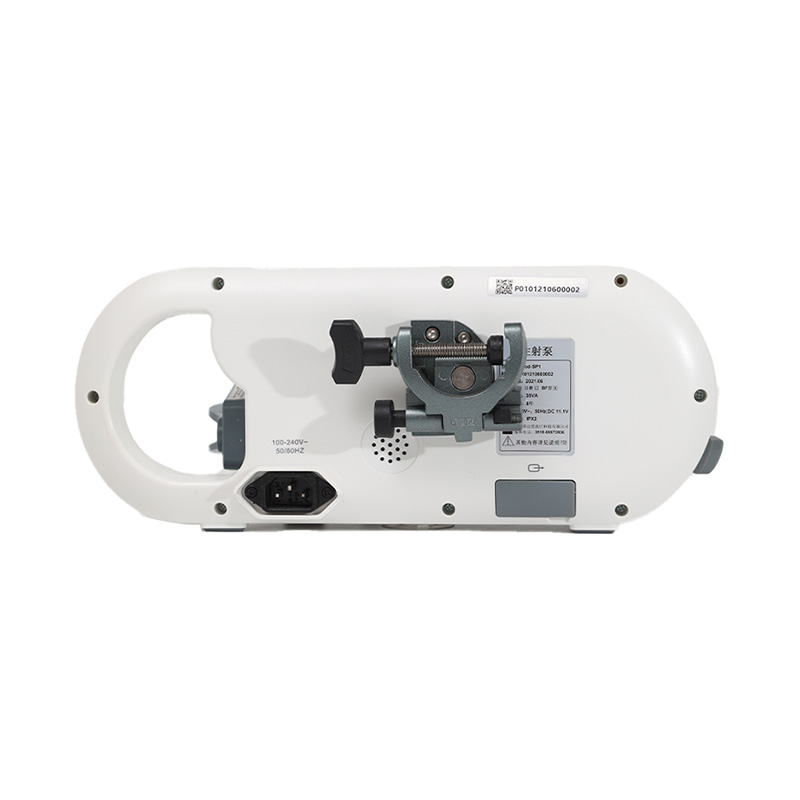

● Mounting Bracket or Clamp: To secure the pump to an IV pole, cage, or table.
● Syringe Holders/Clamps: For attaching syringes of various sizes (e.g., 5mL, 10mL, 20mL) to the pump.
● User Manual: Includes setup instructions, operation guidelines, and maintenance tips.
● Warranty Card: Provides details on warranty coverage and after-sales support.
● Optional Accessories:Additional syringe clamps or adapters for specialized use.Rechargeable battery (if the pump supports battery operation).Carrying case for portability.
