Description

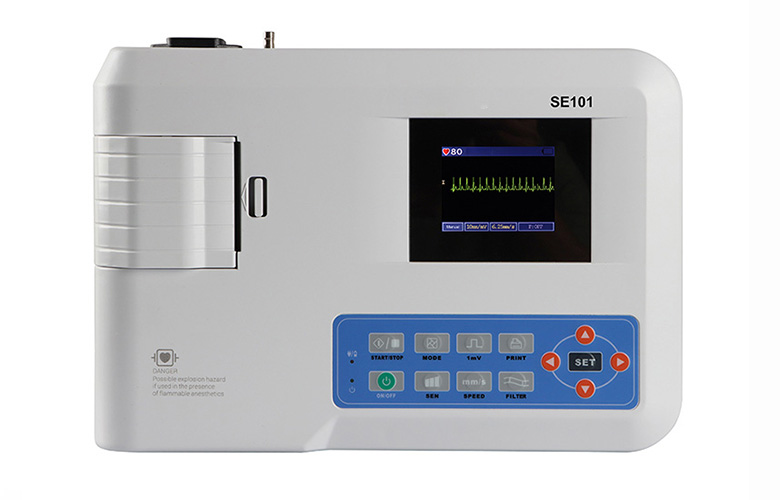

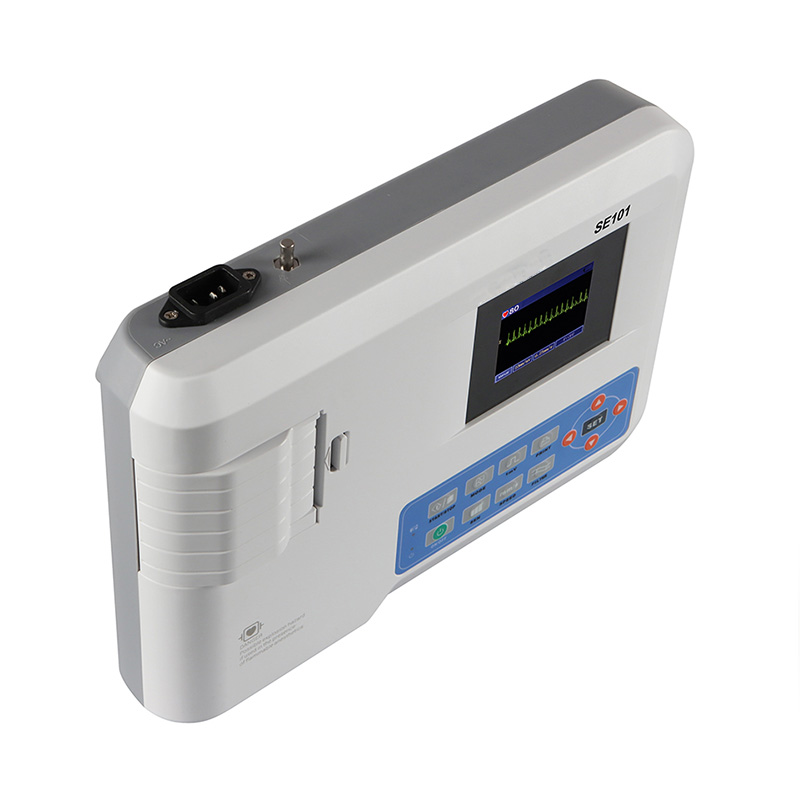

The 1-Channel Electrocardiograph SE101 Vet is a specialized single-channel electrocardiogram (ECG) device designed for veterinary use. It is engineered to capture and record the electrical activity of an animal's heart, providing essential data for diagnosing cardiac conditions and monitoring heart health.● Advanced digital isolation technology to significantly minimize signal interferences
● Auto/manual operation selectable
● Optional rhythm lead detection for abnormal heart rate
● Automatic power-off design to save energy and cost
● User-friendly keyboard design with ergonomic operation comfor
| Lead | Standard 12 leads,simultaneous acquisition |
| Input Circuit | Floating;Protecting against defibrillation and pacemaker effect |
| Input Impedance | ≥50MΩ |
| Patient Leakage Current | <10 μA |
| Input Circuit Current | ≤0.1μA |
| Calibration Voltage | 1mV±5% |
| Frequency Response | 0.05-150Hz |
| Time Constant | ≥3.2s |
| Sensitivity | 2.5,5,10,20,40 mm/mV |
| Noise Level | <15μVp-p |
| Power Requirements | AC:100-240V,50/60Hz,40 VA DC:14.8V rechargeable battery |
| Safety Level | IEC Class I,type CF |
| Operation Mode | Automatic or manual |
| Printer | High resolution thermal array printer |
| Paper Speed | 6.25,12.5,25,50mm/s |
| Recording Paper | 50mmx20m,roll paper |
| Product size | 31.5×21.5x7cm |
| Packing size | 41x31x21cm |
| Net weight | ≤ 2 kg |
| Gross weight | 3.8kg |
● Main Unit: The 1-channel electrocardiograph device itself.
● Electrodes: A set of veterinary-specific ECG electrodes for animal use.
● Lead Wires: High-quality lead wires to connect the electrodes to the main unit.
● Power Supply: An AC adapter or battery pack for powering the device.
● User Manual: Instructions for setup, operation, maintenance, and safety precautions.
● Carrying Case: A protective case for storing and transporting the device and accessories.
● Optional Accessories (if included): Software for ECG data analysis, a warranty card, and safety warning labels.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
