Description

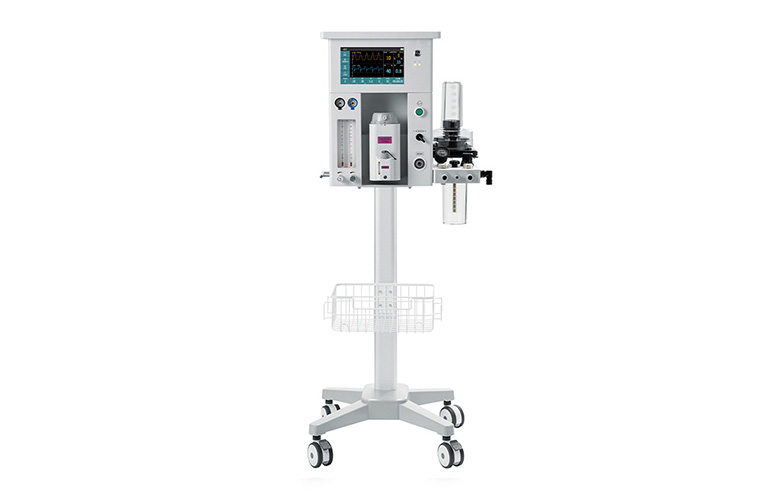

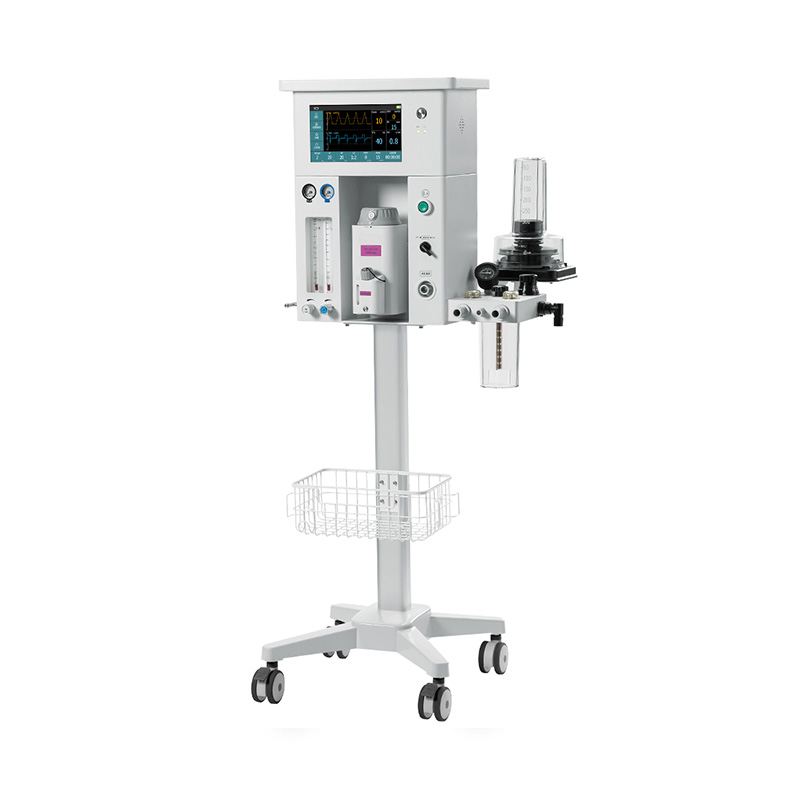

Veterinary Anesthesia Machine is a medical device used for animal surgery and diagnosis and treatment. Its main function is to provide anesthetic gas and oxygen for animals to maintain their painless state during the surgery.● Suitable for anesthesia of cats/dogs/monkeys/pigs and other animals under 100KG
● Operation Mode: Semi-closed,open breathing circuit for option
● Flow Range: 0-4L/min
● APL: 0.2-7.0Kpa
● O2 Flush: 25-75L/min high oxygen flow
| Physical Specifications | |
| Dimensions and Weight | |
| (Including trolley,evaporator,excluding accessories package) | |
| Weight | ≤37kg |
| Height | 1397mm |
| Width | 640mm |
| Depth | 634mm |
| Castor | 4 castors and 2 with brakes |
| Top Shelf | |
| Length | 425mm |
| Width | 260mm |
| Weight limit | 10kg |
| Display | |
| Size | 10.1” |
| Resolution | 1024*600 |
| Brightness | Adjustable(1-5 level) |
| Touch Screen | Capacitive |
| LED Indicator | 2,one for AC power and one for operation |
| Audio Indicator | Alarm(4 levels) |
| Speaker | |
| Electrical Specifications | |
| AC Power Input | |
| Voltage | 220V~240V |
| Frequency | 50/60Hz |
| Internal Batteries | |
| Number Of Batteries | 1 |
| Battery Type | Lithium battery |
| Rated Battery Voltage | 14.8V |
| Battery Capacity | 2200mAh |
| Minimum Battery Run Time | ≥60min(Under the standard working condition) |
| Port | RS232 |
| Pneumatic System Specifications | |
| Pipeline Supply | |
| Gas Type | Air, oxygen |
| Gas Supply Pressure Range | 280kPa~600kPa(40psi~87psi) |
| Input Connector | NIST or DISS |
| Gas Supply Pressure Gauge Range | 0kPa～1000kPa(Opsi~140psi) |
| Oxygen Flush Flow Range | 25L/Min~75L/Min |
| Flowmeter | |
| Range | OL/min～5L/min |
| Accuracy | <1L/min:±0.1L/min 1L/min~5L/min:10%of the displayed value |
| Auxiliary Common Gas Outlet (ACGO) | |
| Type | Mechanical switch |
● Gas filter tank: It is used to filter impurities in the anesthetic gas to ensure the purity of the anesthetic gas delivered to animals.
● Gas recovery device: It is used to recover the unused anesthetic gas during the surgical process, reducing waste and environmental pollution.
● Induction box: It is used to induce anesthesia in animals before surgery, enabling them to smoothly enter the anesthetized state.
● Fixed bracket: It is used to fix various components of the anesthesia machine, such as the evaporator, induction box, gas recovery device, etc., to ensure the stability of the anesthesia machine during use.
● Other accessories: such as oxygen cylinders (or air pumps), masks, tracheal intubation tubes, etc. These accessories may vary depending on the specific model and application of the anesthesia machine.
● User Manual: Provides information such as usage instructions, operation guides, and maintenance for the anesthesia machine. The user manual is an important reference for users to understand and use the anesthesia machine.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
