Description

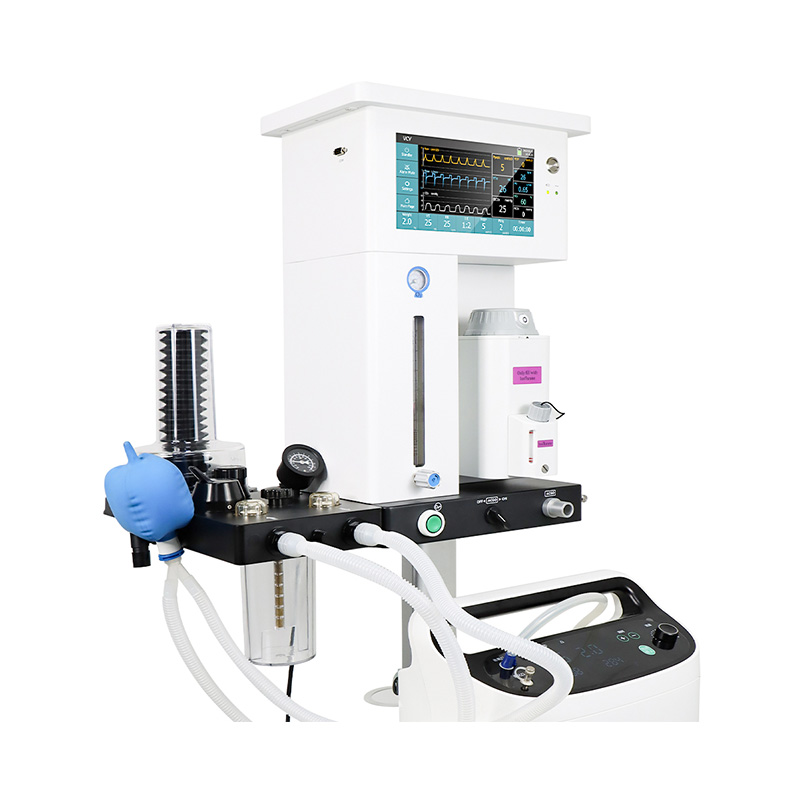

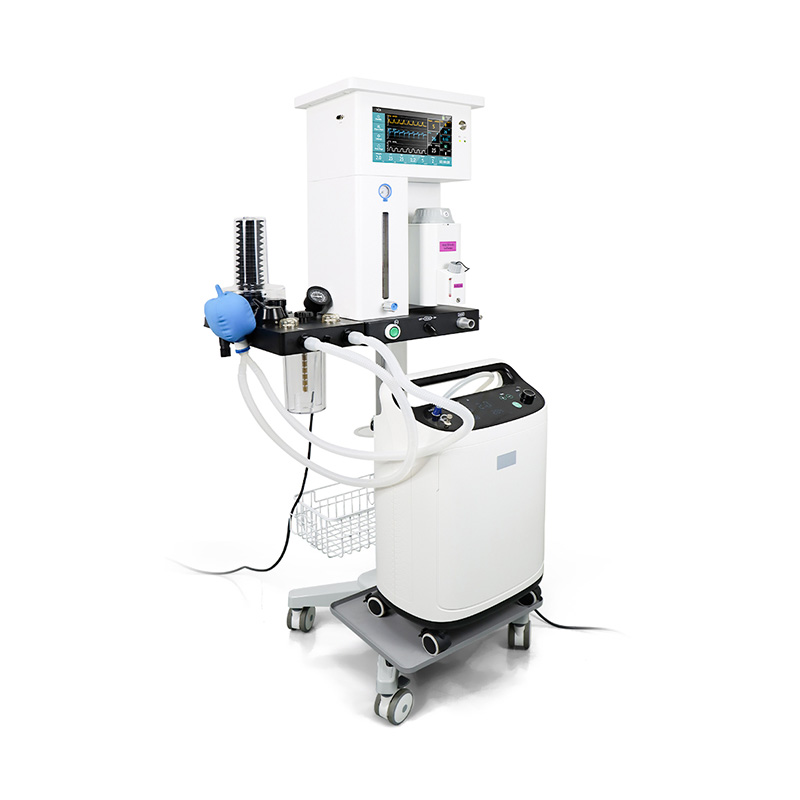

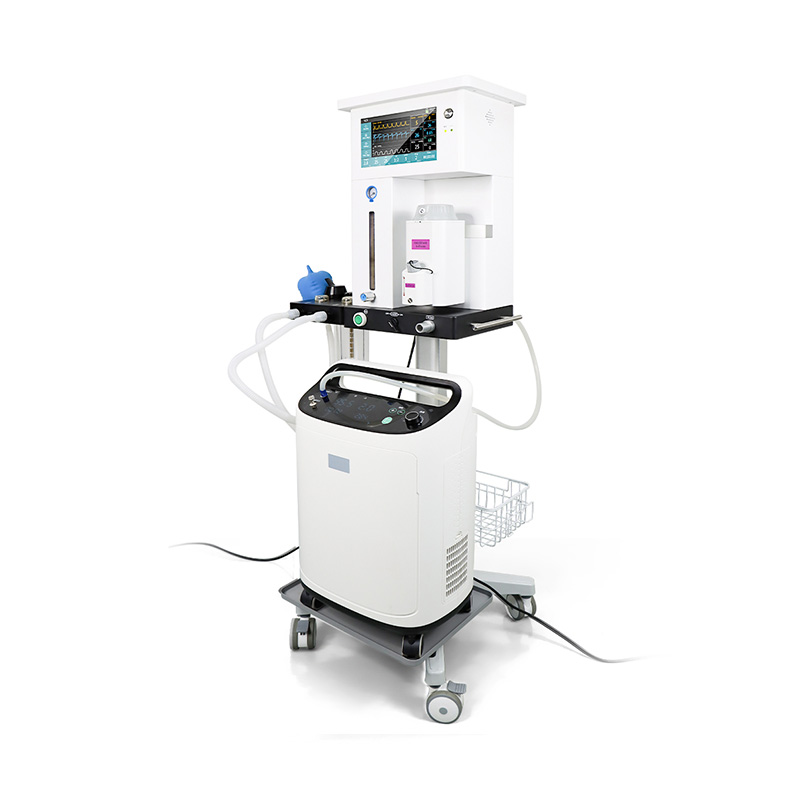

Veterinary Anesthesia Machine is a medical device used for animal surgery and diagnosis and treatment. Its main function is to provide anesthetic gas and oxygen for animals to maintain their painless state during the surgery.● Suitable for anesthesia of cats/dogs/monkeys/pigs and other animals under 100KG
● Operation Mode: Semi-closed,open breathing circuit for option
● Flow Range: 0-4L/min
● APL: 0.2-7.0Kpa
● O2 Flush: 25-75L/min high oxygen flow
| Physical Specifications | |
| Dimensions and Weight | |
| (Including trolley,evaporator,excluding accessories package) | |
| Weight | ≤40kg |
| Height | 1448mm |
| Width | 642mm |
| Depth | 608mm |
| Castor | 4 castors and 2 with brakes |
| Top Shelf | |
| Length | 384mm |
| Width | 260mm |
| Weight limit | 10kg |

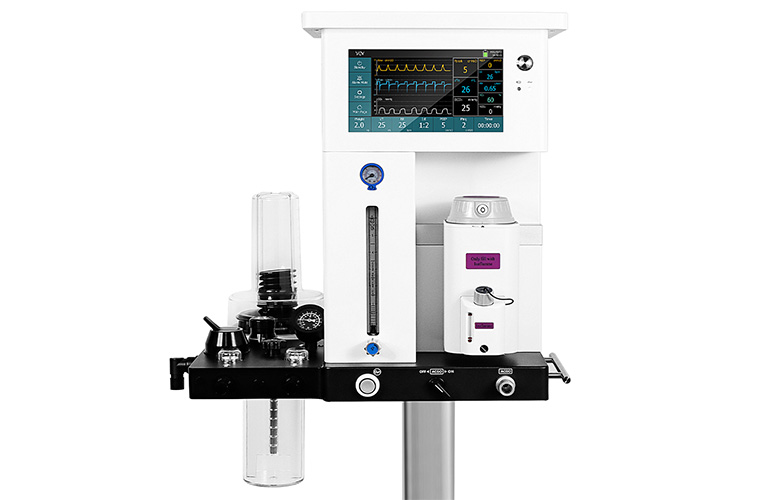

| Display | |
| Size | 10.1” |
| Resolution | 1024*600 |
| Brightness | Adjustable(0-4 level) |
| Touch screen | Capacitive |
| LED Indicator | 2,one for AC power and one for operation |
| Audio Indicator | |
| Speaker | Alarm(4 levels) |
| Electrical SpecificationsV | |
| AC Power Input | |
| Voltage | 220V~240V |
| Frequency | 50/60Hz |
| Internal Batteries | |
| Number of batteries | 1 |
| Battery type | Lithium battery |
| Rated battery voltage | 14.8V |
| Battery capacity | 2200mAh |
| Minimum battery run time | ≥60min(Under the standard working condition) |
| Port | RS232 |
| Pneumatic System Specifications | |
| Pipeline Supply | |
| Gas type | Oxygen |
| Gas supply pressure range | OkPa~600kPa |
| Input connector | NIST or DISS |
| Gas supply pressure gauge range | OkPa～600kPa |
| Oxygen Flush | |
| Flow range | 25L/Min~75L/Min |
| Flowmeter | |
| Range | OL/min～5L/min |
| Accuracy | <1L/min:±0.1L/min 1L/min~5L/min:10%of the displayed value |

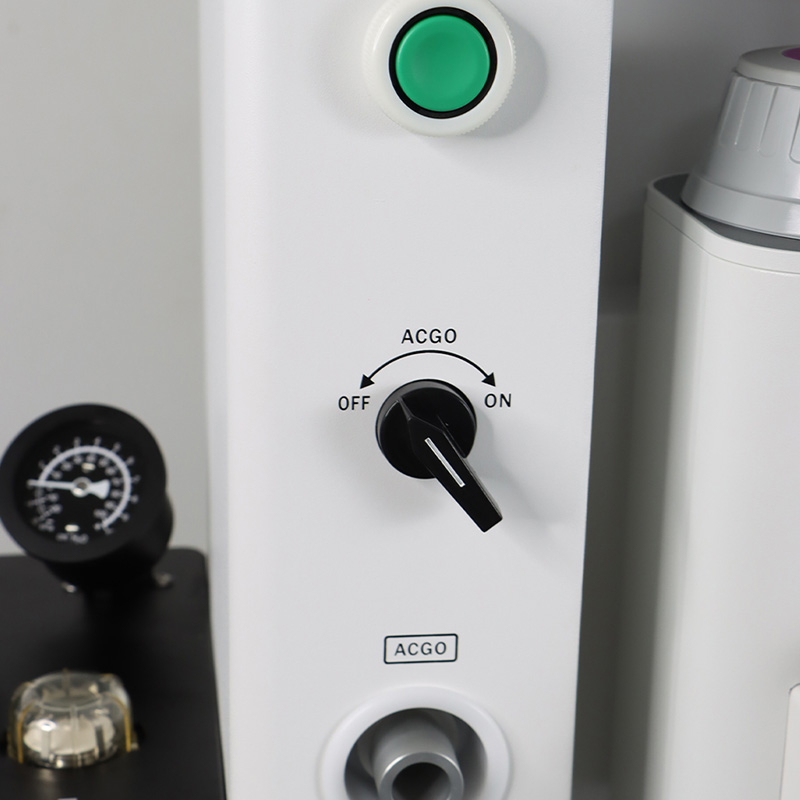

| Auxiliary Common Gas Outlet (ACGO) | |
| Type | Mechanical switch |
| Anesthetic Breathing System Specifications | |
| Breathing System Leakage | |
| System leakage | ≤100mL/min(under 3kPa) |
| Connectorr | |
| Manual bag port | 22mm OD/15mm ID conical |
| Inhalation | 22mm OD/15mm ID conical |
| Exhalation | 22mm OD/15mm ID conical |
| CO2 Absorbent | |
| Volume | 500mL |

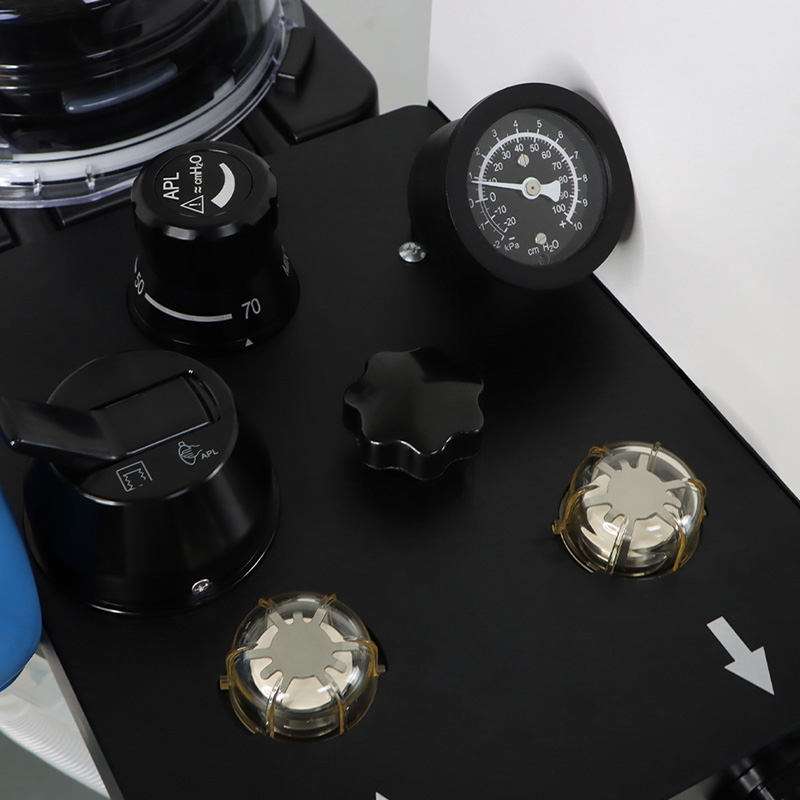

| APL Valve | |
| Range | 1cmH20~70cmH2O |
| Airway Pressure Gauge | |
| Type | Mechanical |
| Range | -20cmH2O~100cmH2O |
| Anesthetic Vaporizer Specifications | |

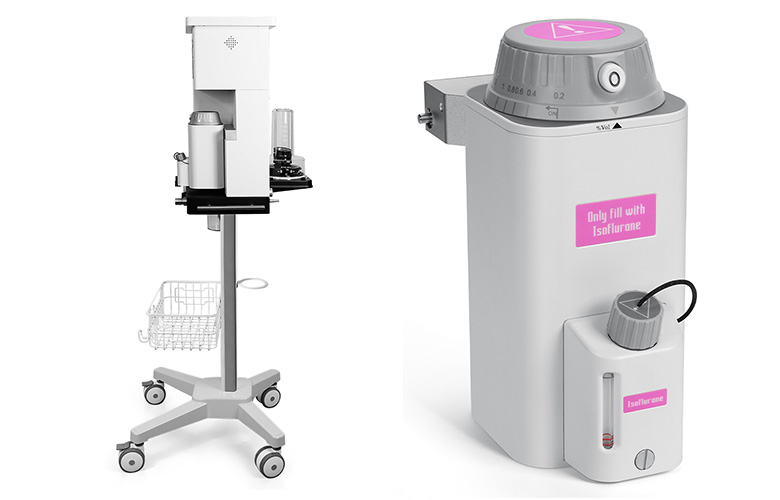

| Vaporizer | |
| Filling methods | Pour Fill(Isoflurane、Sevoflurane、Enflurane) |
| Weight | 8.0kg(empty)8.5kg(full) |
| Filling volume | 360ml(dry wick)300ml(moist wick)260ml(between the minimum and maximum marks) |
| Concentration range | 0~6%(Isoflurane,Enflurane) 0~8%(Sevoflurane) |
| Concentration accuracy range | -20%~+30%of the set value or |
| -5%～+7.5%of the max value,whichever is the greater(0.2-10L/min &10℃-40℃) | |
| Vaporizer base | Single position,Selectatec connecting type |
| Anesthetic Gas Scavenging System SpecificationsV | |
| Active AGSS | |
| Size | 500mm x150mm x120mm |
| Pump rate | 80L/min |
| Passive AGSS | |
| Connector | 30mm OD conical |
| Windbox specifications | |
| Small bellow capacity | 300mL |
| Large bellow capacity | 1500mL |
| Anesthetic Ventilator Specifications | |
| Drive | Pneumatically driven and electronically control |
| Working mode | Standby/Manual/ACGO Volume Support (VS) Volume Control Ventilation (VCV) Pressure Control Ventilation(PCV) synchronized intermittent mandatory ventilation (SIMV) |
| Setting Parameter Vt | 5mL~1500mL |
| Pinsp | 5cmH2O~50cmH2O |
| Plimit | 5cmH2O~50cmH2O |
| PEEP | OFF,3cmH20~30cmH20 |
| RR | 2bpm~60bpm |
| l:E | 4:1~1:8 |
| Ptrig | -20cmH2O~-2cmH2O |
| Ftrig | 0.2L/min~15L/min |
| Weight | 0,2.0kg~100.0kg |
| Vt | <75mL:±15mL ≥75mL:±20mL or±10%of the set value,whichever is greater |
| Pinsp | ±4.0cmH2O or±10%of the set value,whichever is greater |
| Plimit | ±4.0cmH2O or±10%of the set value,whichever is greater |
| PEEP | OFF:Do not define 4cmH20～30cmH2O:±2.0cmH2O or±10%of the set value,whichever is greater |
| RR | ±1bpm or±5%of the set value,whichever is greater |
| l: E | 2:1～1:4:±10%of the set value Other ranges:Do not define |
| Ptrig | ±2cmH2O or±15%of the set value,whichever is greater |
| Ftrig | ±1L/min or±15%of the set value,whichever is greater |
| Ventilator Monitoring Parameter | |
| Vt | OmL~3000mL |
| MV | OL/min~100L/min |
| PEAK | -20cmH2O~120cmH2O |
| PEEP | OcmH2O~70cmH2O |
| RR | Obpm~120bpm |
| Ventilator Monitoring Accuracy | |
| Vt | <75mL:±15mL ≥75mL:±20mL or±10%of the set value,whichever is greater |
| MV | ±0.2L/min or±15%of the set value,whichever is greater |
| Ppeak | ±(2%of full scale +4%of the readings) |
| PEEP | OFF:Do not define 4cmH20～30cmH2O:±2.0cmH2O or±10%of the set value,whichever is greater |
| RR | ±1bpm or±5%of the set value,whichever is greater |
| Environment Specifications | |
| Operation | 10℃~40℃ |
| Temperature | |
| Relative humidity(noncondensing) | 15%~95% |
| Barometric pressure | 70kPa~106kPa |
| Storage | -20℃~55℃ |
| Temperature | |
| Relative humidity(noncondensing) | 10%~95% |
| Barometric pressure | 50kPa~106kPa |
● Gas filter tank: It is used to filter impurities in the anesthetic gas to ensure the purity of the anesthetic gas delivered to animals.
● Gas recovery device: It is used to recover the unused anesthetic gas during the surgical process, reducing waste and environmental pollution.
● Induction box: It is used to induce anesthesia in animals before surgery, enabling them to smoothly enter the anesthetized state.
● Fixed bracket: It is used to fix various components of the anesthesia machine, such as the evaporator, induction box, gas recovery device, etc., to ensure the stability of the anesthesia machine during use.
● Other accessories: such as oxygen cylinders (or air pumps), masks, tracheal intubation tubes, etc. These accessories may vary depending on the specific model and application of the anesthesia machine.
● User Manual: Provides information such as usage instructions, operation guides, and maintenance for the anesthesia machine. The user manual is an important reference for users to understand and use the anesthesia machine.
We specialize in providing high-quality medical devices and solutions for breeding enterprises, pet hospitals and research institutions.
